Titan Master Series HD2P-12KMSC 12,000lb Clearfloor 2-Post Lift
HD2P-12KMSC
The all-new Titan Lifts Master Series 12,000lb two post clear floor lift—perfect for any hobbyist or commercialized application. With the flexibility to have asymmetric or symmetric columns and two height options of either 154” or 176” this lift is a great option for most applications. The 12KMSC comes with a premium motor by 100-year old industry innovator Bucher Hydraulics, and a robust set of 3 stage arms to ensure years of consistent operation. Combine all that with the included disconnect and one button operation to be the last lift you will ever need.
Features
12,000 lb lifting capacity
Asymmetric or Symmetric columns
Lift height of 154” or 176”
Power on Green LED

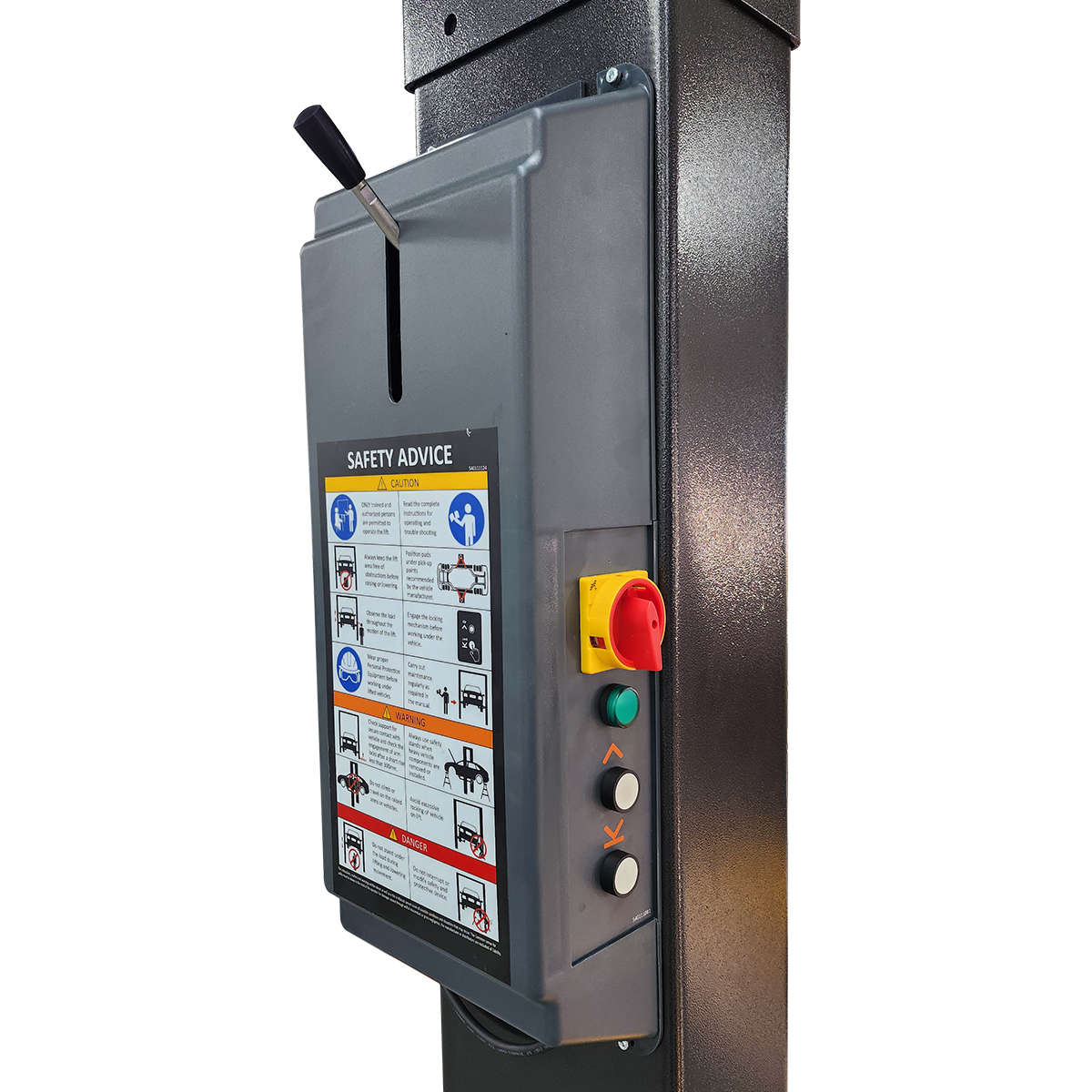

Single button operation
Included electrical disconnect
Single lever lowering

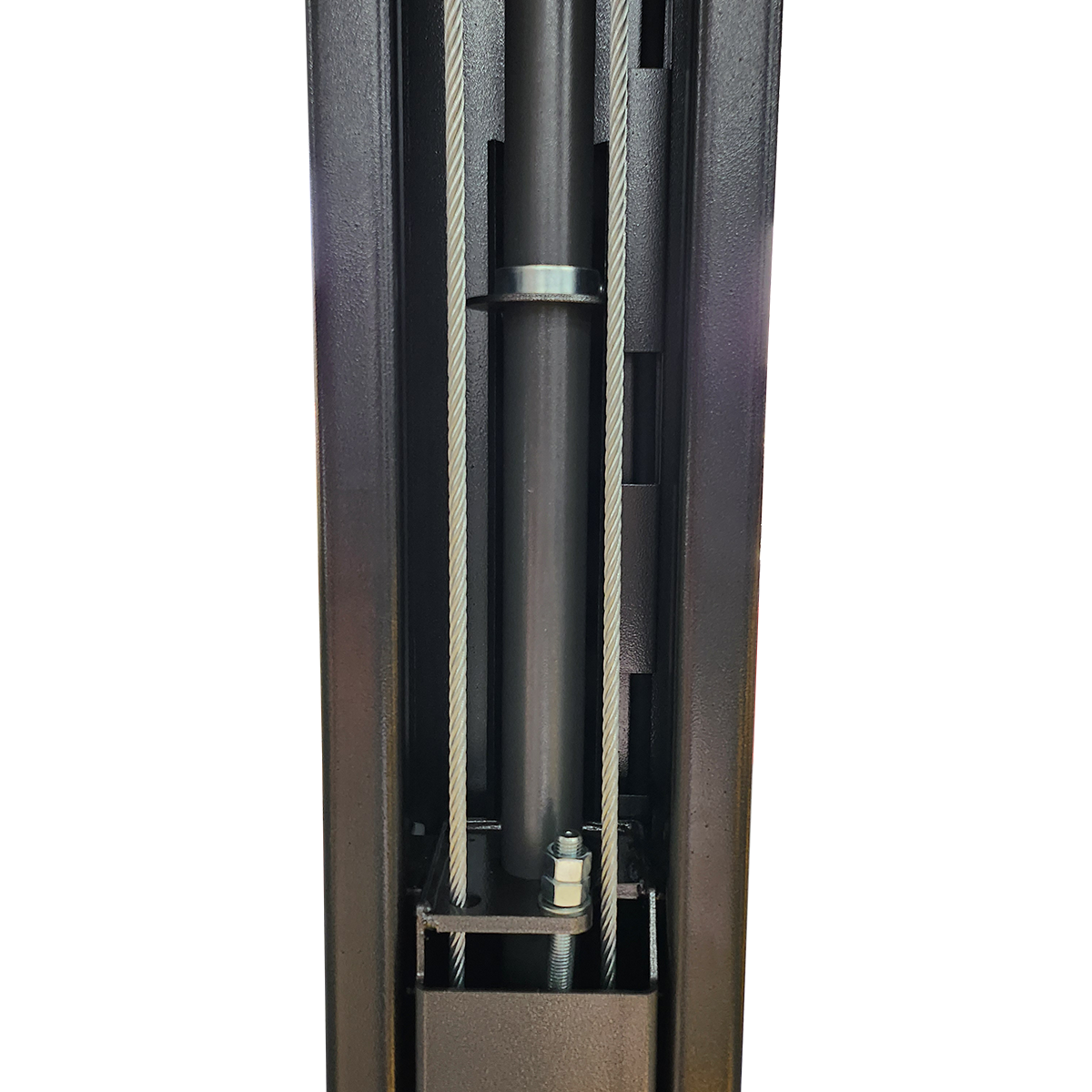

Direct drive hydraulic cylinders
Single point lock release
Overhead shut-off bar with limit switch
Carriage limit switch
Serviceable arm restraint locks

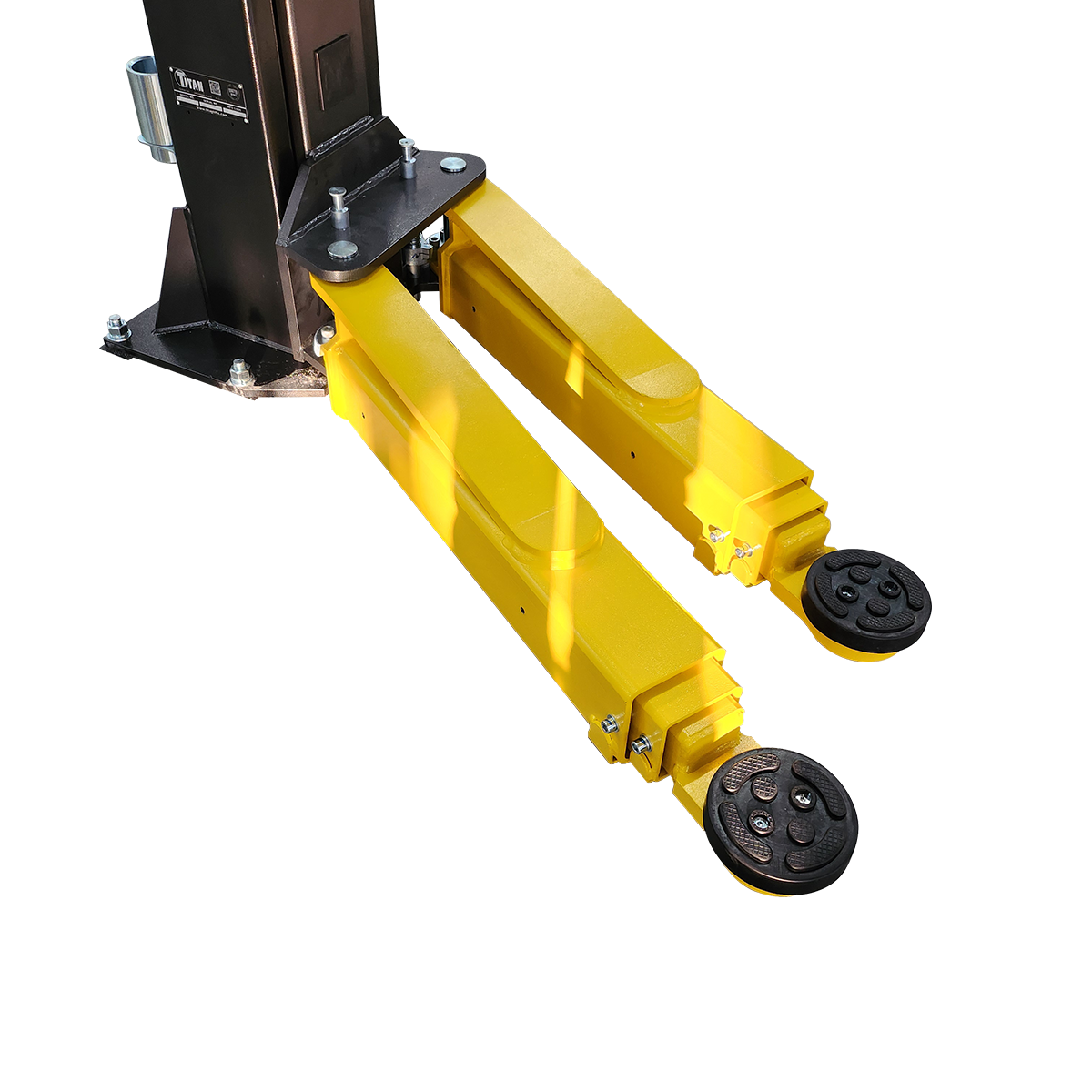

Four 3 stage arms
European style carriages
Thread up lifting pads
4” truck adapters
Rubber door guards
Steel hydraulic oil reservoir
Powder coated hammered dark finish
5 Year Structural Warranty
2 Year Electric/Hydraulic Warranty
Lifetime Warranty on Nylon Slide Blocks
Durable Textured Powder-coated Finish
SYMMETRICAL COLUMN CONFIGURATIONSpecificationsHD2P-12KMSC
Outside Of Baseplates - Width 154-7/8"
Inside of Columns - Width 131-3/4"
Overall Width w/Motor 160-3/16"
Drive-Thru 119"
Lifting Height 4-5/16” to 74-13/16”
Overall Height 153-9/16" or 175-1/4"
Lifting Capacity 12,000 lb
Shipping Weight 2,190 lb
Power Unit 220V-60Hz-1Ph-2.2kW
ASYMMETRICAL COLUMN CONFIGURATIONSpecificationsHD2P-12KMSC
Outside Of Baseplates - Width 161-1/2"
Inside of Columns - Width 126"
Overall Width w/Motor 161-1/2"
Drive-Thru 113-3/8"
Lifting Height 4-5/16” to 74-13/16”
Overall Height 153-9/16" or 175-1/4"
Lifting Capacity 12,000 lb
Shipping Weight 2,190 lb
Power Unit 220V-60Hz-1Ph-2.2kW
